Festo Spiral Plastic Recoil Tubing 4mm. Working length=1M Blue

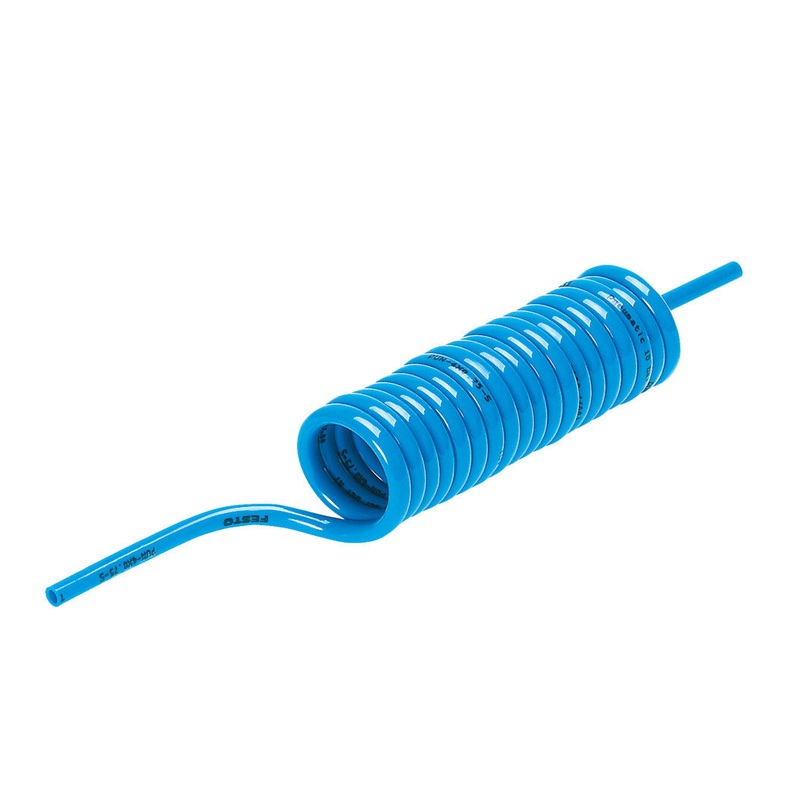

Blue spiral recoiling tubing.

Technical Data

• Working length: 1 m
• Outside diameter: 4 mm
• Block length: 0.284 m
• Inside diameter: 2.6 mm
• Winding diameter: 25 mm
• Number of turns: 45
• Temperature-dependent operating pressure: -0.095 MPa – 1 MPa
• Temperature-dependent operating pressure: -0.95 bar – 10 bar
• Temperature-dependent operating pressure: -13.775 psi – 145 psi
• Approval: German Technical Control Board (TV)
• Certificate issuing authority: B 013277 0506 00
• Operating medium: Compressed air to ISO 8573-1:2010 [7:-:-]
• LABS (PWIS) conformity: VDMA24364-B2-L
• Ambient temperature: -35 C – 60 C
• Product weight: 27 g
• Pneumatic connection:
  – For push-in connector O.D. 4 mm
  – For barbed fitting I.D. 3 mm with union nut
  – For barbed fitting I.D. 3 mm
• Colour: Blue
• Shore hardness: D 52 +/-3
• Material tubing: TPE-U(PU)
