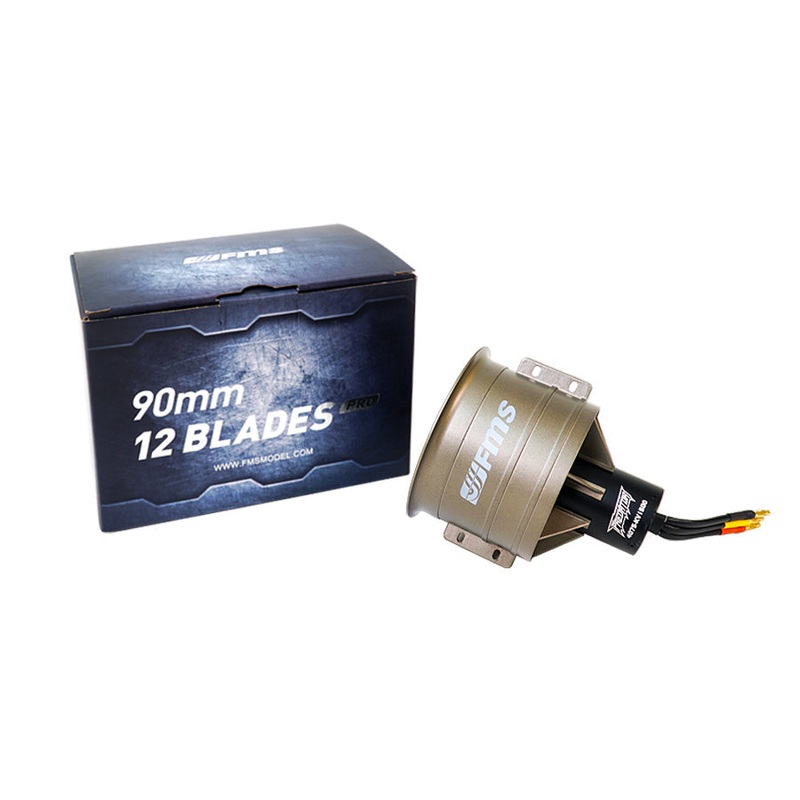

FMS 90MM DUCTED FAN (12-BLADE) WITH 4075-KV1500 INNER RUNNER FMSEDF010

FMS is proud to announce it’s revolutionary 90mm aluminium alloy EDF unit. Featuring a CNC processed duct system with highly efficient fan blades, the 4075 1500KV motor provides a massive peak thrust of 5000 grams!

• 4 pole ultra-high torque motor design
• CNC components with aircraft-grade aluminium heat shink
• High quality copper wiring maximizes motor efficiency, resists temperatures up to 180 degrees Celcius
• Ceramic NMB sealed bearings provides ultimate durability and decreased power loss due to friction
• Stator balanced to within 10mg for minimised vibrations at high RPMs
• Imported ultra thin steel fins for increased heat dissipation
• Self-cooling motor reduces operational heat, prevents performance degradation

Recommended specification:

• Battery: 8S 5500mAh 45 liop battery
• ESC 120A brushless ESC
• Motor: 4075-KV1200 inner-running Motor

Designed by a team of aviation engineers using aviation-grade CAD and simulation software, the FMS 90mm EDF was fine-tuned to allow for peak efficiency despite its compact design.

Featuring precision-built fan on stainless-steel bushings, the FMS 90mm EDF unit is designed to provide a long and reliable service-life. The self-cooling motor drives the fan unit through a precision motor shaft, ensuring unparalleled rotational stability. FMS is confident that, through cutting-edge material and structural engineering, this EDF unit will provide the perfect balance of performance, sound and efficiency.

Engineered to fit most 90mm airframes with ease, the FMS 90mm aluminium-alloy EDF unit will bring your aircraft to a whole new level of awesome!
