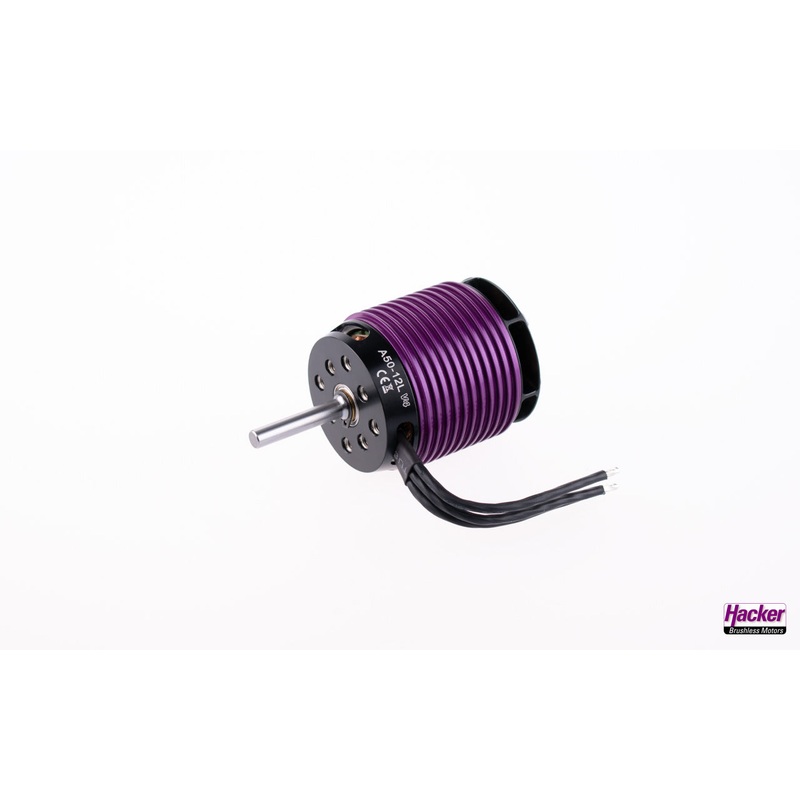

Hacker A50-12L Turnado V4 Kv450 15726744

The new Turnado V4 fits seamlessly into our program for helicopters. It convinces with significant power reserves and by lower power consumption. The Turnado V4 version offers even better performance than its predecessor.

Helicopters 10S to 12S R/C models with approx. 600 to 800 millimetres (24 to 31.5 inches) rotor blade length, 3D flight. Gliders with approx. 12 kilogram (26.5lb) take-off weight. 6S RFM 13×10, controller Master Mezon 120 lite for current consumption during flight of approx. 60 to 65A. Gliders with approx. 16 kilogram (35lb) take-off weight. 6S RFM 14×10, controller Master Mezon 120 lite for current consumption during flight of approx. 70 to 75A.

Antriebsvorschlag Propeller 13″-14″ Specifications max. power range [W] (max.15 sec.) 4000 Poles 10 Turns 12 Idle current (I0) at 8.4V [A] 1.2 Internal resistance (Ri) [Ohm] 0.019 Output shaft 6 RPM max. 25000 Recommended timing [] 15 – 20 Switching Frequency [kHz] 8 Controller recommendation [A] (depending on setup) 80 – 130 Idle speed per volt (kv) 450rpm max. current [A] 80 Dimensions and weight Weight [g] 445 Length [mm]/[in] 61 Outer diameter [mm]/[in] 51.5 Shaft diameter [mm]/[in] 6 (internal: 8) Delivery contents Prop Adapter Ja Mounting cross Nein Gold plug mm (recommended) 4 Backmount mountable Optional Front mountable Ja

Scope of delivery

Hacker A50-12L Turnado V4 kv450, prop adapter 6.0/8.0mm and instructions. Different folding props can be used to match the model (see tab Accessories .)
