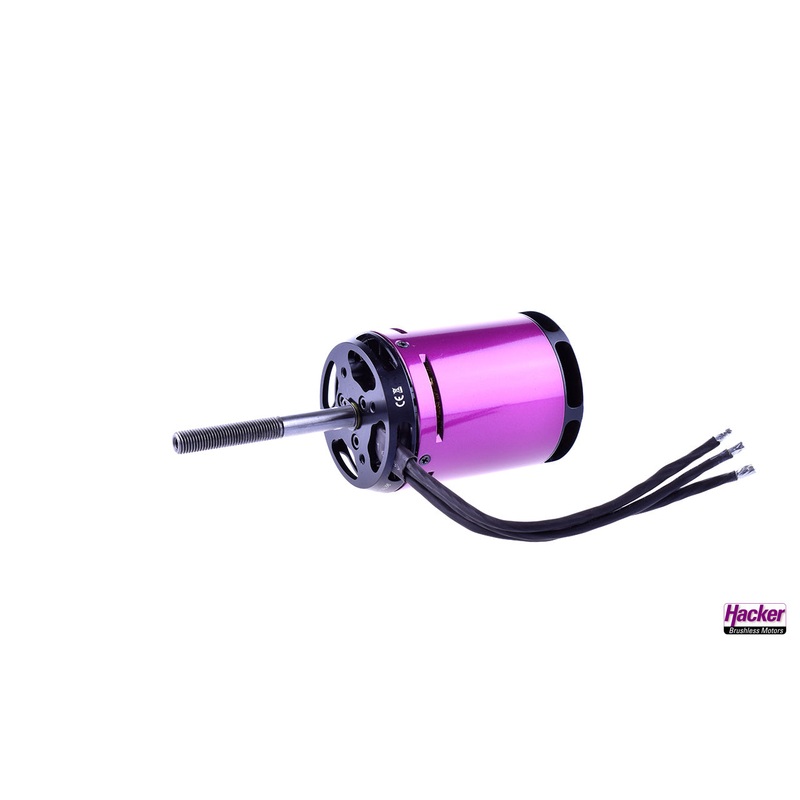

Hacker A60-18 L V4 kv149 Brushless Outrunner Motor 33726629

Product description and features

The A60 outrunners are the largest and most powerful motors in the Hacker A series. They are used in all facets of RC flying, including sports planes, warbirds, F3A models, 3D aerobatic models, FES gliders and helicopters. Depending on the length and speed of the selected motor, the drive is powered by 6 to 12 S Lipo. Due to the integrated fan and the large, reinforced ball bearings, these motors are very robust and durable. The A60-XS and -S variants are supplied as a backmount version. No motor mount is required. The A60-M and -L variants can be front-mounted. Alternatively, our separately available aluminium motor mount with additional support bearing can be used.

Description

Our 12S power drive for sports models up to 10kg. Aerobatic models up to 7kg and gliders with 12S up to 16kg.

Accessories

You will find suitable controllers, batteries, propellers and mounting accessories such as motor mounts and spacer bolts in the Accessories tab.

Scope of delivery

1x A60-18 L V4 kv149, front mount accessories, prop driver and instructions.

Drive recommendation

A60-18 L V4 kv149 Item no.: 33726629 Propeller Xoar 24×10 RFM 23×12 LiPo 12S 12S Voltage [V] 45 45 Current [A] 85 68 Power [W] 3819 3108 RPM 6188 6382 Controller [A] 90 90 Timing[] 20-25 20-25 Specifications max. power range [W] (max.15 sec.) 2600 Poles 14 Turns 18 Idle current (I0) at 8.4V [A] 1,6 Internal resistance (Ri) [Ohm] 0,02 Recommended timing [] 20 – 25 Switching Frequency [kHz] 8 Controller recommendation [A] (depending on setup) 90 – 125 Idle speed per volt (kv) 149 Dimensions and weight Weight [g] 910 Length [mm]/[in] 85,2 Outer diameter [mm]/[in] 59 Shaft diameter [mm]/[in] 8 Delivery contents Prop Adapter Ja Mounting cross Nein Gold plug mm (recommended) 4 – 5,5 Backmount mountable Nein Front mountable Ja
