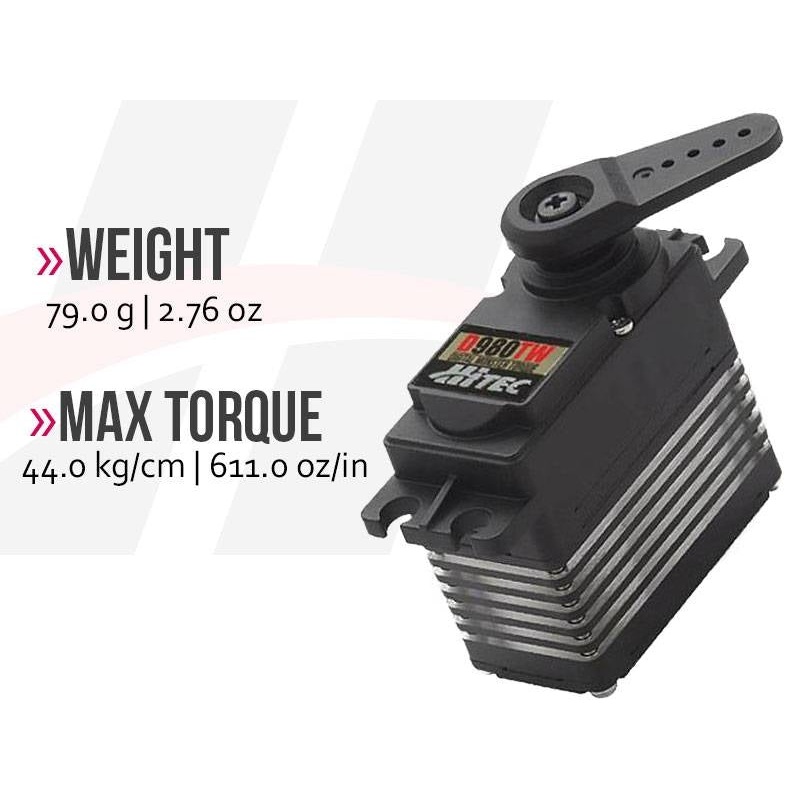

Hitec D980TW Standard Digital Coreless Servo 79g 44kg/0.17s 4.8V – 7.4V 2221020

A programmable, 32-bit, high torque, water resistant, titanium gear servo

The titanium D-980TW is part of the Hitec D-Series dynamo servo line. All Hitec D-Series servos have been designed using brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 – 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings a monster performance.

Features:

• Programmable digital amplifier with MOSFET drive
• Long life (1M cycles) indirect potentiometer
• Durable titanium alloy metal gears with dual ball bearings
• Semipermanent magnetic rotary encoder
• Ultra hardness gear shaft with 3 axial metal bushing
• Water and dust resistant case
• Heat sink for motor

Programming Functions:

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Soft Start Rate
• Overload Protection
• Data Save / Load
