Hitec HS5087MH Micro Digital Cored Servo 21.9g 4.3kg/0.13s 6.0V – 7.4V 2216555

Hitec HS5087MH Micro Digital Cored Servo 21.9g 4.3kg/0.13s 6.0V – 7.4V 2216555

$31.19 $38.99

Hitec HS-5087MH Micro Digital Cored Servo 21.9g 4.3kg/0.13s 6.0V - 7.4V 2216555The HS-5087MH digital, metal gear micro servo is the high voltage version of our ever popular HS-5085MG. Built with a 3-pole ferrite motor and heavy-duty metal gears, this servo

Qty:
Payment:

Payment Option Image

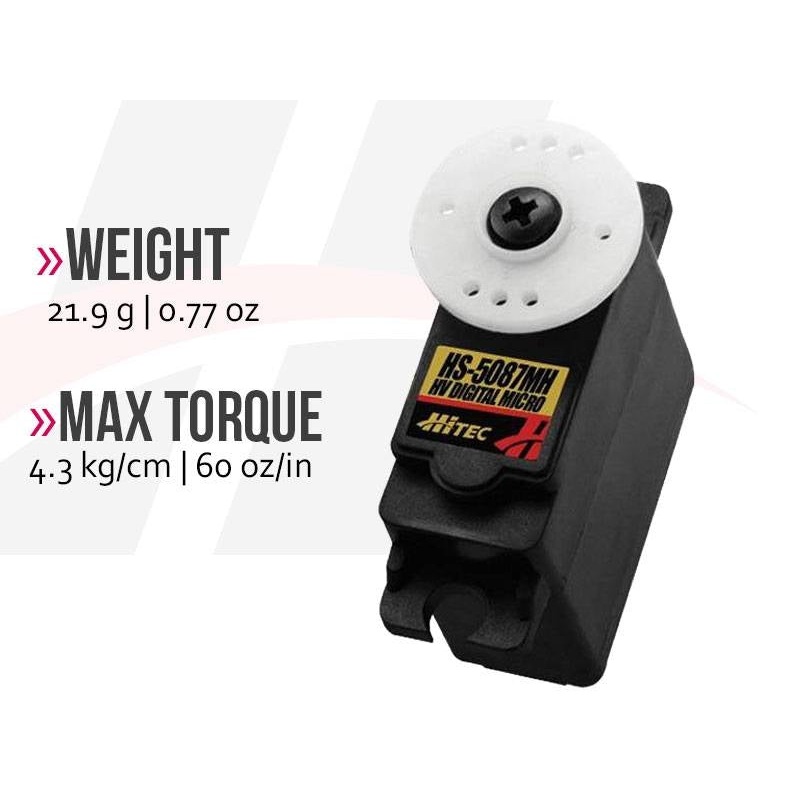

Hitec HS-5087MH Micro Digital Cored Servo 21.9g 4.3kg/0.13s 6.0V – 7.4V 2216555

The HS-5087MH digital, metal gear micro servo is the high voltage version of our ever popular HS-5085MG. Built with a 3-pole ferrite motor and heavy-duty metal gears, this servo will bring maximum performance to your hobby and deliver extra power with a 2-cell 7.4V LiPo battery. Whether you are a beginner or an expert in the RC field, our HS-5087MH will provide the strength and capability you need and want in a micro servo. Drivers will find it the perfect steering servo for their 1/16th scale vehicles. Pilots with .15 to .40-size glow and electric aircraft will relish in its power and reliability. Its precision and performance also make it perfect for 500-size helicopters.

Features:

  • Our Smallest 7.4v 2-Cell LiPo Capable Servo
  • Rugged Metal Gears
  • Ball Bearing-Supported Output Shaft
  • Standard Programmable Digital Circuit for More Holding Power
  • Standard Servo Performance in a Micro Package

Programmable Functions:

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Data Save / Load
  • Program Reset

Specifications:

Performance Specifications: Operating Voltage Range (Volts DC) 6.0V ~ 7.4V Speed (Second @ 60) 0.17 ~0.13 Maximum Torque Range oz. / in. 50~60 Maximum Torque Range kg. / cm. 3.6~4.3 Current Draw at Idle 3mA No Load Operating Current Draw 200mA Stall Current Draw 1,750 mA Dead Band Width 2s Physical Specifications: Dimensions (Inches) 1.14 x 0.51 x 1.18 Dimensions (Metric) 29.0 x 13.0 x 30.0 Weight (Ounces) 0.77 Weight (Gram) 21.9 Circuit Type G1 Programable Digital Motor Type 3 Pole Metal Brush Ferrite Gear Material Metal Bearing Type Top Ball Bearing Output Shaft (type / mm) Standard 24 Case Material Plastic Dust / Water Resistance N / A Connector Gauge (AWG) / Strand Count 28/20
