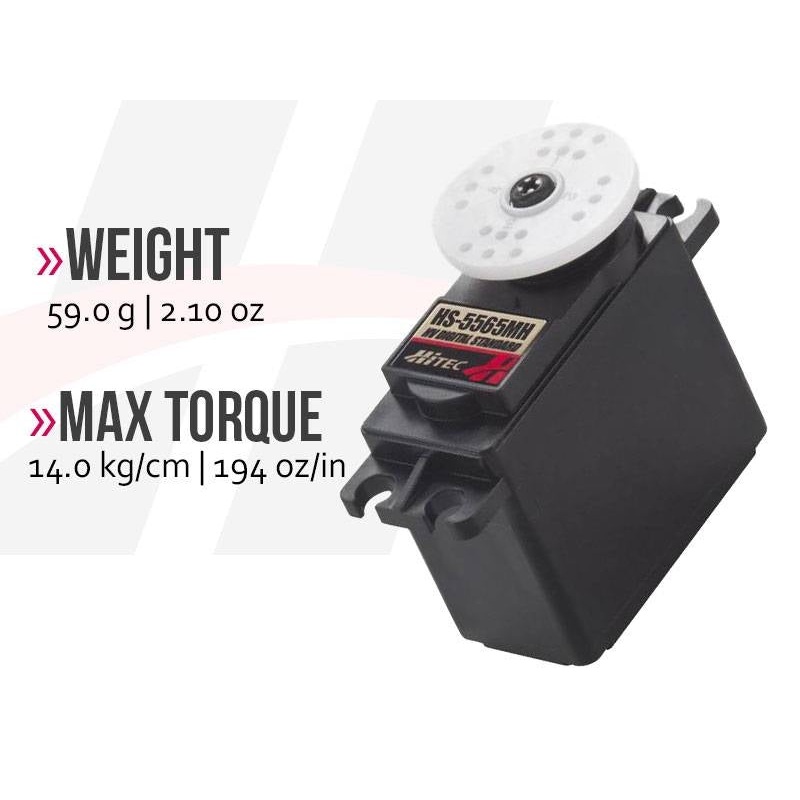

Hitec HS-5565MH Standard Digital Coreless Servo 60g 14kg/0.09s 6.0V – 7.4V 2217660
Increase your performance not your budget with the high voltage, high speed, digital HS-5565MH. Featuring a high performance coreless motor, heavy-duty metal gears and dual ball bearings, the HS-5565MH is rated for 7.4 volt, 2S LiPo operation The HS-5565MH brings lightning speed and acceleration to your 1/10th scale touring cars, buggies and short course vehicles, helicopters up to .90-size and sport to high performance aircraft up to 25 percent.
Features:
- Our Most Economically Priced High Speed Digital Coreless Servo
- Quick and Precise Coreless Motor
- Heavy Duty Metal Gears
- 7.4v 2-Cell LiPo Capability
- Standard Programmable Digital Circuit
Programmable Functions:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Data Save / Load
- Program Reset
Specifications:
| Performance Specifications |
| Operating Voltage Range (Volts DC) |
6.0V ~ 7.4V |
| Speed (Second @ 60) |
0.11 ~ 0.09 |
| Maximum Torque Range oz. / in. |
153~194 |
| Maximum Torque Range kg. / cm. |
11~14 |
| Current Draw at Idle |
4mA |
| No Load Operating Current Draw |
300mA |
| Stall Current Draw |
2,700 mA |
| Dead Band Width |
2s |
| Physical Specifications |
| Dimensions (Inches) |
1.57 x 0.78 x 1.49 |
| Dimensions (Metric) |
39.8 x 19.8 x 37.8 |
| Weight (Ounces) |
2.10 |
| Weight (Gram) |
60.0 |
| Circuit Type |
G1 Programable Digital |
| Motor Type |
Coreless Metal Brush |
| Gear Material |
Metal |
| Bearing Type |
DualBall Bearing |
| Output Shaft (type / mm) |
Standard 24 |
| Case Material |
Plastic |
| Dust / Water Resistance |
N / A |
| Connector Gauge (AWG) / Strand Count |
25 / 40 |
