Name: Hitec HS70MG Ultra Micro Analogue Cored Servo 14.2g 3kg/0.14s 4.8V - 6.0V 2212122
SKU: ZRMI18034370
Availability: InStock

Hitec HS70MG Ultra Micro Analogue Cored Servo 14.2g 3kg/0.14s 4.8V – 6.0V 2212122

$27.19 ~~$33.99~~

Hitec HS-70MG Ultra Micro Analogue Cored Servo 14.2g 3kg/0.14s 4.8V - 6.0V 2212122Our strong and speedy analog HS-70MG possess the performance qualities necessary for the new class of 42-48 inch performance 3D aircraft and 450-size helicopters. Featuring H

Payment:

Description
Reviews (0)

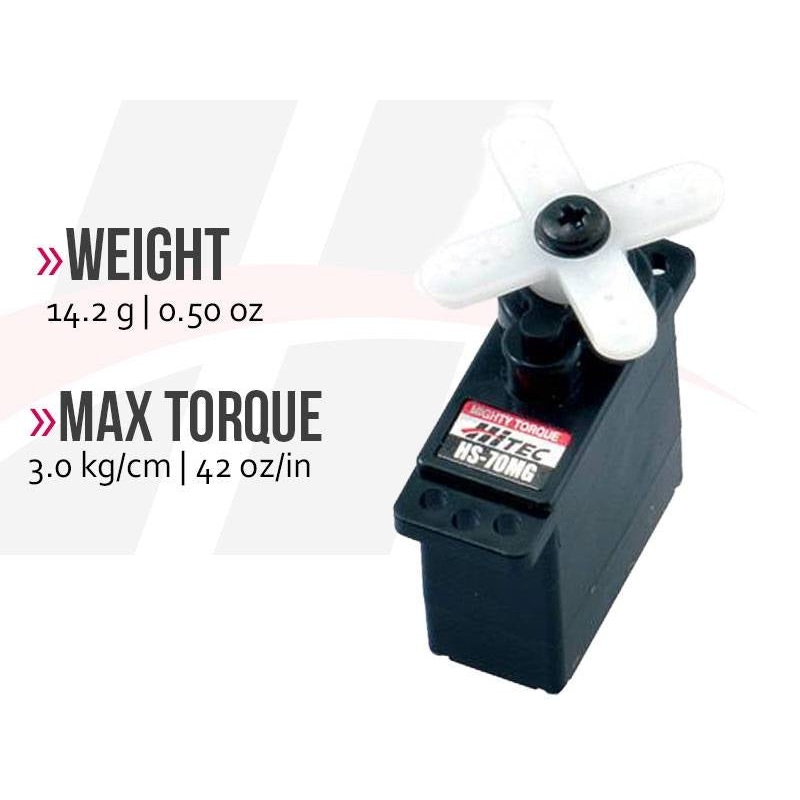

Hitec HS-70MG Ultra Micro Analogue Cored Servo 14.2g 3kg/0.14s 4.8V – 6.0V 2212122

Our strong and speedy analog HS-70MG possess the performance qualities necessary for the new class of 42-48 inch performance 3D aircraft and 450-size helicopters. Featuring Hitecs durable metal gears, cored motors, top ball bearings and Generation 1 circuitry, these new additions to our vast servo family will have all your planes and helis flying with remarkable precision and power. Fast, forceful, fantastic! We Are Hitec!

Specifications:

Performance Specifications Operating Voltage Range (Volts DC) 4.8V ~ 6.0V Speed (Second @ 60) 0.17 ~ 0.14 Maximum Torque Range oz. / in. 33~42 Maximum Torque Range kg. / cm. 2.4~3.0 Current Draw at Idle 8mA No Load Operating Current Draw 160mA Stall Current Draw 1,250 mA Dead Band Width 5s Physical Specifications Dimensions (Inches) 0.92 x 0.45 x 1.14 Dimensions (Metric) 23.6 x 11.6 x 28.1 Weight (Ounces) 0.50 Weight (Gram) 14.2 Circuit Type HT7003 Analog SMT Motor Type 3 Pole Metal Brush Neodymium Gear Material Metal Bearing Type Top Ball Bearing Output Shaft (type / mm) Micro 23 Case Material Plastic Dust / Water Resistance N / A Connector Gauge (AWG) / Strand Count 28/20

Reviews

There are no reviews yet.

Be the first to review “Hitec HS70MG Ultra Micro Analogue Cored Servo 14.2g 3kg/0.14s 4.8V – 6.0V 2212122”
