Hitec HS7245MH Mini Digital Coreless Servo 34g 6.4kg/0.11s 6.0V – 7.4V 2216574

Hitec HS7245MH Mini Digital Coreless Servo 34g 6.4kg/0.11s 6.0V – 7.4V 2216574

$37.50 $74.99

Hitec HS-7245MH Mini Digital Coreless Servo 34g 6.4kg/0.11s 6.0V - 7.4V 2216574Watch out, hereit comes! Our new high voltage, corelessHS-7245MH servo delivers exceptional speed and torque in a compact package. Built with an efficient coreless motor optimiz

Qty:
Payment:

Payment Option Image

Hitec HS-7245MH Mini Digital Coreless Servo 34g 6.4kg/0.11s 6.0V – 7.4V 2216574

Watch out, hereit comes! Our new high voltage, corelessHS-7245MH servo delivers exceptional speed and torque in a compact package. Built with an efficient coreless motor optimized for 7.4V operation and heavy-duty metal gear train with dual ball bearings, this high-end mini servo delivers unbridled performance just like its brother, theHS-7235MH.

Whether you are flying mid-size gas and electric airplanes, 500-550 electric helis, or driving 1/12th scale on-road racers and 1/18th scale rock crawlers, the full-size muscle of this servo will make you the master of your RC domain. Exceeding Your Expectations Is What We Do!

Features:

  • Our Best High Speed Mini Servo
  • Efficient Coreless Motor
  • Heavy Duty Metal Gear Train
  • Dual Ball Bearing
  • 7.4v 2-Cell LiPo Capability
  • G2.5 Fully Programmable Digital Circuitry

Programmable Functions:

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Overload Protection
  • Resolution
  • Data Save / Load
  • Program Reset

Specifications:

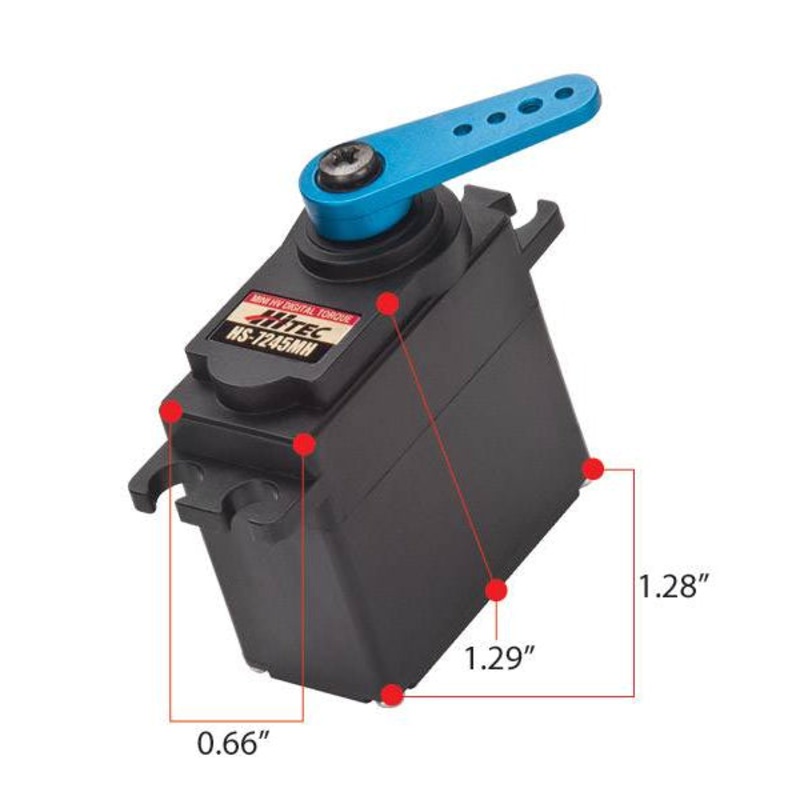

Performance Specifications Operating Voltage Range (Volts DC) 6.0V ~ 7.4V Speed (Second @ 60) 0.13 ~ 0.11 Maximum Torque Range oz. / in. 72~89 Maximum Torque Range kg. / cm. 5.2~ 6.4 Current Draw at Idle 12 mA No Load Operating Current Draw 190mA Stall Current Draw 1,600 mA Dead Band Width 2s Physical Specifications Dimensions (Inches) 1.28 x 0.66 x 1.29 Dimensions (Metric) 32.4 x 16.8 x 32.8 Weight (Ounces) 1.20 Weight (Gram) 34.0 Circuit Type G2.5 Programable Digital Motor Type Coreless Metal Brush Gear Material Metal Bearing Type DualBall Bearing Output Shaft (type / mm) Standard 24 Case Material Plastic Dust / Water Resistance N / A Connector Gauge (AWG) / Strand Count 22 / 60
