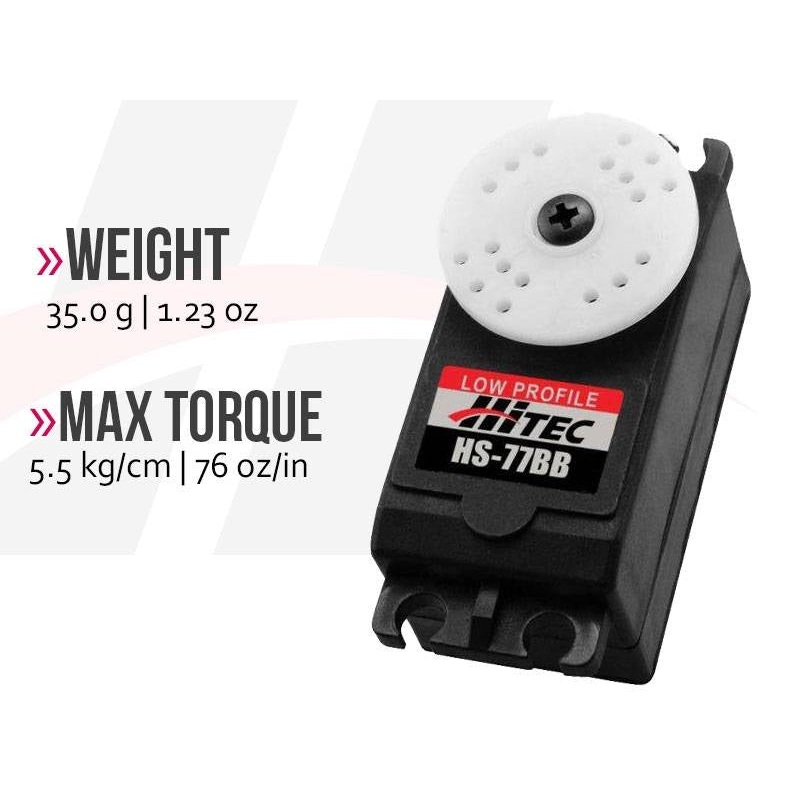

Hitec HS-77BB Low Profile Analogue Cored Servo 35g 5.5kg/0.14s 4.8V – 6.0V 2212127

With its low profile design and strong standing torque, the HS-77BB is a great choice for wing or tail mounting in aircrafts up to 1.20 size. Submarines, boats, cars and trucks can also benefit from this servos strength and compact size.

Features:

• Low profile compact design
• High torque three-pole ferrite motor
• Durable nylon gears
• Top ball bearings

Specifications:

Performance Specifications Operating Voltage Range (Volts DC) 4.8V ~ 6.0V Speed (Second @ 60) 0.18 ~ 0.14 Maximum Torque Range oz. / in. 61~76 Maximum Torque Range kg. / cm. 4.4~5.5 Current Draw at Idle 8mA No Load Operating Current Draw 250mA Stall Current Draw 800 mA Dead Band Width 8s Physical Specifications Dimensions (Inches) 1.73 x 0.90 x 0.98 Dimensions (Metric) 44.0 x 23.0 x 25.0 Weight (Ounces) 1.23 Weight (Gram) 35.0 Circuit Type HT7003 Analog SMT Motor Type 3 Pole Metal Brush Ferrite Gear Material Nylon Bearing Type Top Ball Bearing Output Shaft (type / mm) Standard 24 Case Material Plastic Dust / Water Resistance Splash Proof Connector Gauge (AWG) / Strand Count 25 / 40
