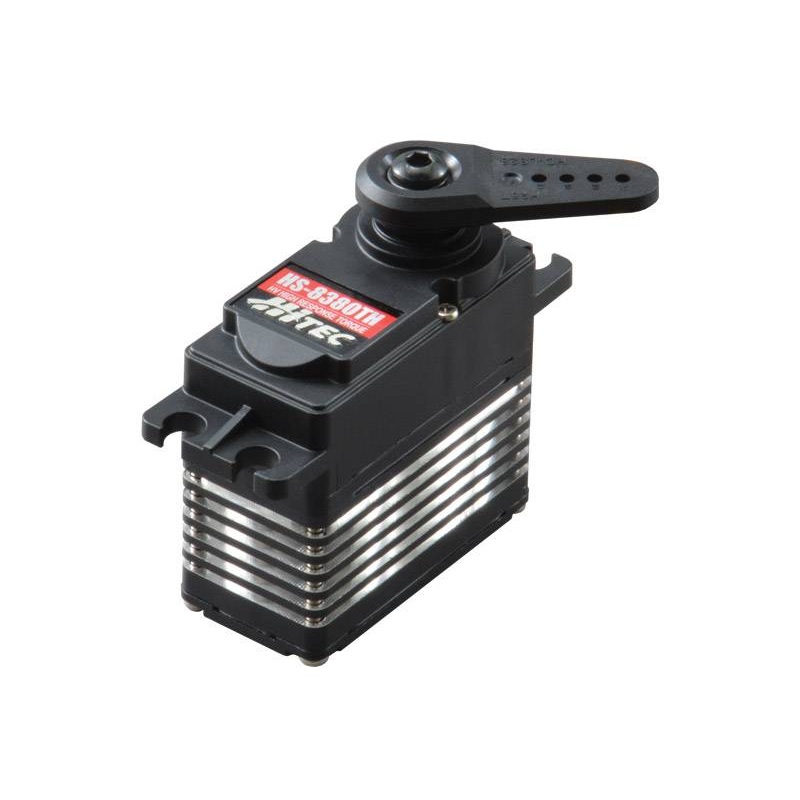

Name: Hitec HS8380TH Digital High Voltage (HV) Ultra Premium Servo 68g 35Kg/0.14s 4.8V - 6.0V 2220680
SKU: ZRMI18038093
Availability: InStock

Hitec HS8380TH Digital High Voltage (HV) Ultra Premium Servo 68g 35Kg/0.14s 4.8V – 6.0V 2220680

$43.00 ~~$85.99~~

Hitec HS-8380TH Digital High Voltage (HV) Ultra Premium Servo 68g 35Kg/0.14s 4.8V - 6.0V 2220680Take command of the track with our torque master servo, the HS-8380TH. Built rugged and tough with a titanium gear train, efficient coreless motor and high reso

Payment:

Description
Reviews (0)

Hitec HS-8380TH Digital High Voltage (HV) Ultra Premium Servo 68g 35Kg/0.14s 4.8V – 6.0V 2220680

Take command of the track with our torque master servo, the HS-8380TH. Built rugged and tough with a titanium gear train, efficient coreless motor and high resolution, non-programmable digital circuits, this ultra response, high voltage servo delivers the power and force required to beat the fiercest competitors. Drivers of 1/8th scale on-road, short course, buggies, truggies, monster trucks and crawlers will relish in the revolutionary strength of the HS-8380TH. Start your engines!

Applications:
1/8th Scale Short Course Trucks, 1/8th Scale Buggies, Truggies and Monster Trucks, 1/10 – 1/8th Scale Crawlers
Note:Due to it’s ultra narrow dead band this servo is not recommended for aircraft use.

Features:

High Resolution Ultra Response Non-Programmable Digital Circuit
Efficient Coreless Motor
Durable Titanium Gears
7.4v 2-Cell LiPo Capability
Industry Standard 25 Tooth Spline (Fut. Compatible)

Specifications:

Performance Specifications Operating Voltage Range (Volts DC) 4.8V ~ 6.0V Speed (Second @ 60) 0.17 ~ 0.14 Maximum Torque Range oz. / in. 403~486 Maximum Torque Range kg. / cm. 29.0 ~ 35.0 Current Draw at Idle XXmAh No Load Operating Current Draw XXXmAh Stall Current Draw XXXXmAh Dead Band Width Xs Physical Specifications Dimensions (Inches) 1.57 x 0.79 x 1.50 Dimensions (Metric) 40.0 x 20.0 x 38.0 Weight (Ounces) 2.4 Weight (Gram) 68.0 Circuit Type HR Digital Motor Type Coreless Metal Brush Gear Material Titanium Bearing Type DualBall Bearing Output Shaft (type / mm) H25T Case Material XXXX Dust / Water Resistance N / A Connector Gauge (AWG) / Strand Count 20 / 80
