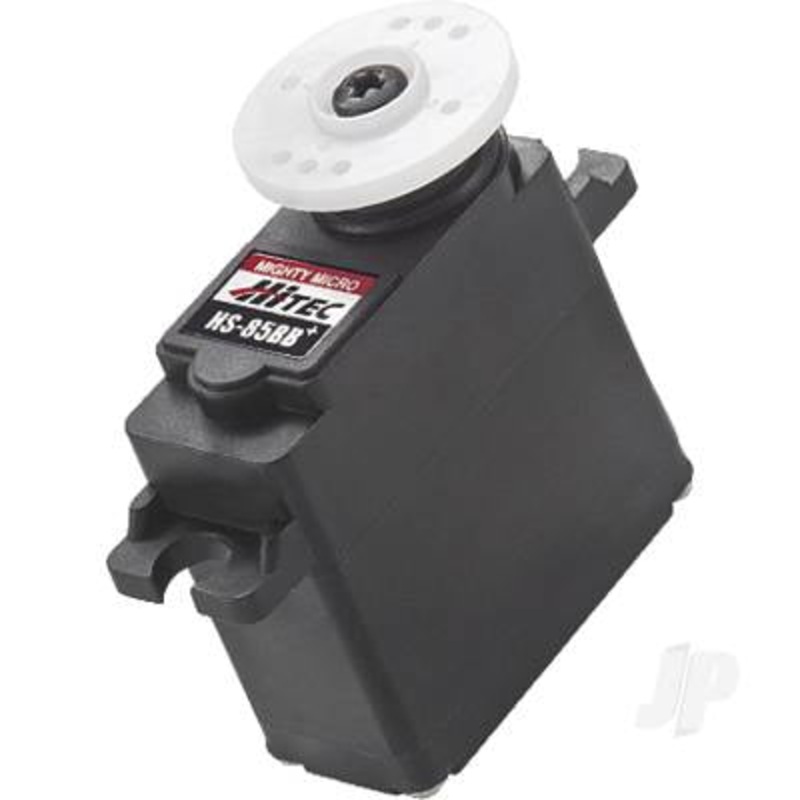

Hitec HS-85BB Micro Analogue Cored Servo 19.2g 3.5kg/0.14s 4.8V – 6.0V 2212170
The HS-85BB features a high power motor for greater speed and torque. The HS-85BB is the choice of modelers looking for a high performance servo without breaking the bank. The ball bearing supported output shaft and sturdy gear trains are preferred for smaller glow and electric airplanes, helis and sail planes.
Features:
- High Torque and Precision Centring
- Strong Resin Gear Train
- Ball Bearing-Supported Output Shaft
- Perfect for Applications where a Standard Servo is too Heavy or Large but Standard Torque is Required
Specifications:
| Performance Specifications |
| Operating Voltage Range (Volts DC) |
4.8V ~ 6.0V |
| Speed (Second @ 60) |
0.16 ~ 0.14 |
| Maximum Torque Range oz. / in. |
42~49 |
| Maximum Torque Range kg. / cm. |
3.0~3.5 |
| Current Draw at Idle |
8mA |
| No Load Operating Current Draw |
280mA |
| Stall Current Draw |
1,200 mA |
| Dead Band Width |
8s |
| Physical Specifications |
| Dimensions (Inches) |
1.14 x 0.51 x 1.18 |
| Dimensions (Metric) |
29.0 x 13.0 x 30.0 |
| Weight (Ounces) |
0.67 |
| Weight (Gram) |
19.2 |
| Circuit Type |
HT7003 Analog SMT |
| Motor Type |
3 Pole Metal Brush Ferrite |
| Gear Material |
Nylon |
| Bearing Type |
Top Ball Bearing |
| Output Shaft (type / mm) |
Standard 24 |
| Case Material |
Plastic |
| Dust / Water Resistance |
N / A |
| Connector Gauge (AWG) / Strand Count |
28/20 |
