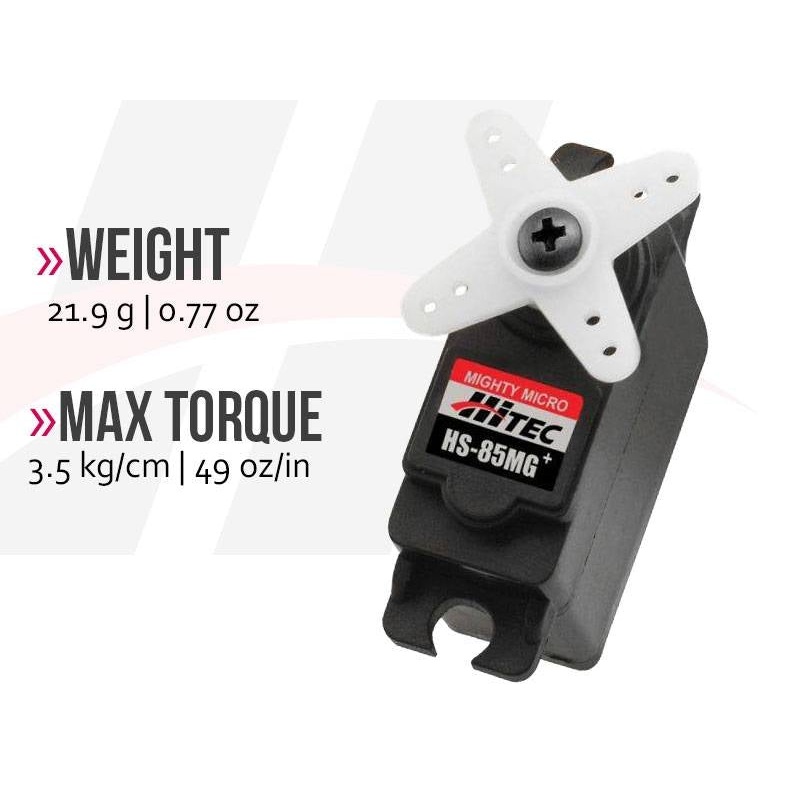

Hitec HS-85MG Micro Analogue Cored Servo 21.9g 3.5kg/0.14s 4.8V – 6.0V 2212190

The HS-85MG features a high power motor for greater speed and torque. The HS-85MG is the choice of modelers looking for a high performance servo without breaking the bank. The ball bearing supported output shaft and sturdy gear trains are preferred for smaller glow and electric airplanes, helis and sail planes.

Features:

• High Torque and Precision Centring
• Rugged Metal Gears
• Spline: 24 Tooth
• Ball Bearing-Supported Output Shaft
• Perfect for Applications where a Standard Servo is too Heavy or Large but Standard Torque is Required
• Size – Micro
• Command Protocol – PWM
• Circuit – Analogue
• Motor – Cored
• Gears – Metal
• Case – Engineering Plastic
• Bearings – Top Ball Bearing
• Circuit Detail – HT7003 Analog SMT
• Motor Detail – 3 Pole Metal Brush Ferrite
• Gear Detail – 4x Metal
• Compatible Horns – Micro Horn [M-I, M-X, M-O, R-O, R-X, R-I, R-D, R-C] Heavy Duty Horn [HD-IL, HD-IM, HD-IS, HD-LS, HD-IG, HD-LL, HD-LG, HD-OS] Metal Horn [R-ML] Quarter Scale Horn [Q-O, Q-I, Q-X] Super Horn [R-XA] Spool Drum Horn Sail Arm Horn
