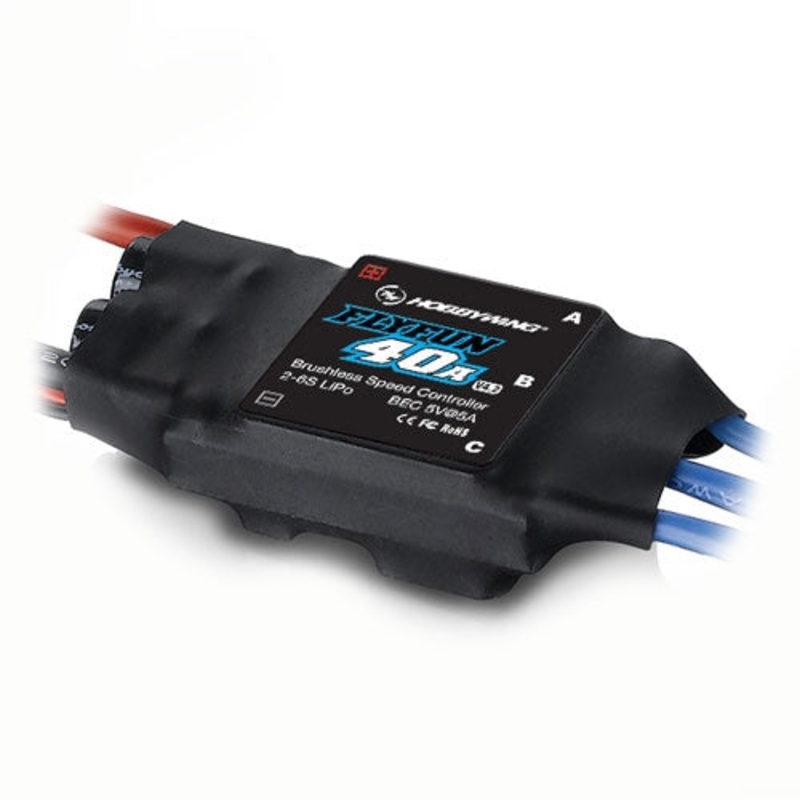

Hobbywing Flyfun 40A V5 Speed Controller HW30214002

Imported components and PCB (printed circuit board) with extremely low impedance adopted by FlyFun ESCs guarantees great current endurance, good performance and high reliability

With a rich set of programmable parameters (via a LED program card/box), FlyFun ESC is applicable to various aircraft (like fixed-wing, heli, multirotor and etc.)

Multiple protection features include abnomal input voltage, ESC thermal, throttle signal loss (or Fail Safe), and low voltage cutoff effectively prolongs the service life of the ESC.

Features:

• Great Performance
• Programmable Parameters
• Efficient Heat-dissipating System
• Four Flight Modes & Auto Restart Function
• Multiple Protections

Specifications:
Brushed/Brushless: Brushless
Cont./Peak Current: 40A/55A
Input Voltage: 3-6S LiPo
BEC Output: Linear mode:5.2-6-7.4v ,8A
Input Wires: Red-14AWG-100mm*1, Black-14AWG-100mm*1
Output Wires: Blue-16AWG-75mm*3
Input Connectors: No
Output Connecotors: 3.5mm Gold Connectors (Female)
LED Program Card: Supported
WiFi Module: Not Supported
Size: 60.0×24.0x15.0mm
Weight: 39g
