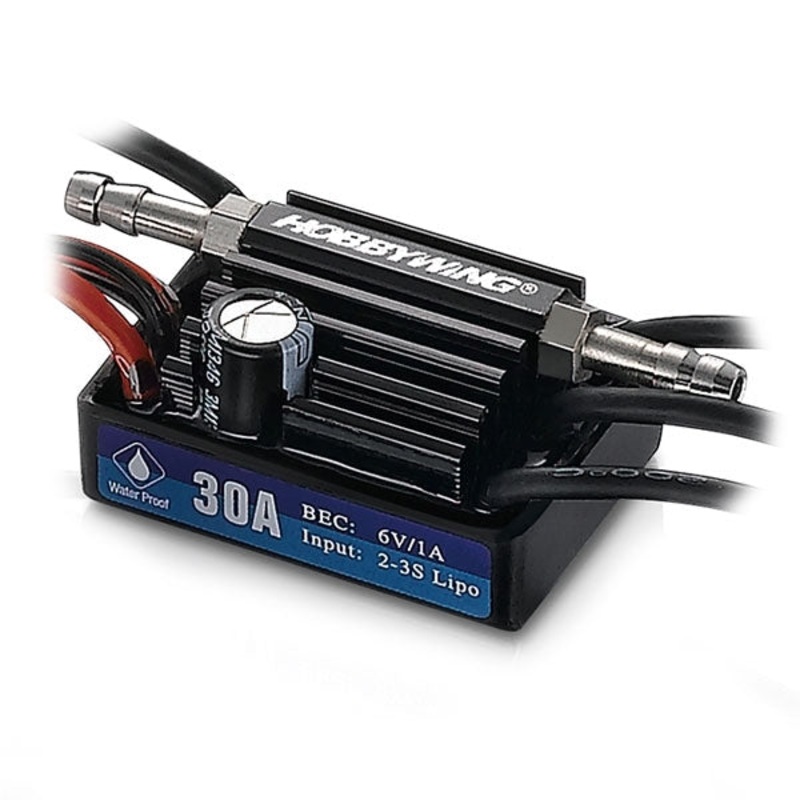

Hobbywing Seaking 30A V3 Speed Controller HW30302060

Built with high-quality components and coupled with cutting-edge firmware, the Seaking V3 is featured by unmatched performance and reliability. Multiple safety adjustable options are in use, with the implementation of the low-voltage cutoff protection, thermal protection and throttle signal loss protection.

The Hobbywing patented heat-conductive copper bar cover on the power board of the Seaking V3 can efficiently and effectively transfer heat to the integrated CNC machined billet aluminum water cooled heat sink housing thus keeping your ESC as cool as possible.

Features

• Special Algorithm Design
• Built-in BEC
• Waterproof Design
• Separate PRG/FAN Port
• Reliability and performance
• Efficient Cooling system

Specifications

Brushed/Brushless:Brushless

Waterproof: Yes

Cont./Peak Current: 30A/180A

Input: 2-3S LiPo/5-9 Cells NiMH

BEC Output: Linear Mode:6V/1A

Input Wires: Red-14AWG-100mm*1, Black-14AWG-100mm*1

Output Wires: Black-16AWG-75mm*3

Input Connectors: No

Output Connecotors: No

Size: 54.5×28.3×18.7mm

I.D./O.D. of the Water Cooling Pipe: ?2.0/4.0 mm

Weight: 41g
