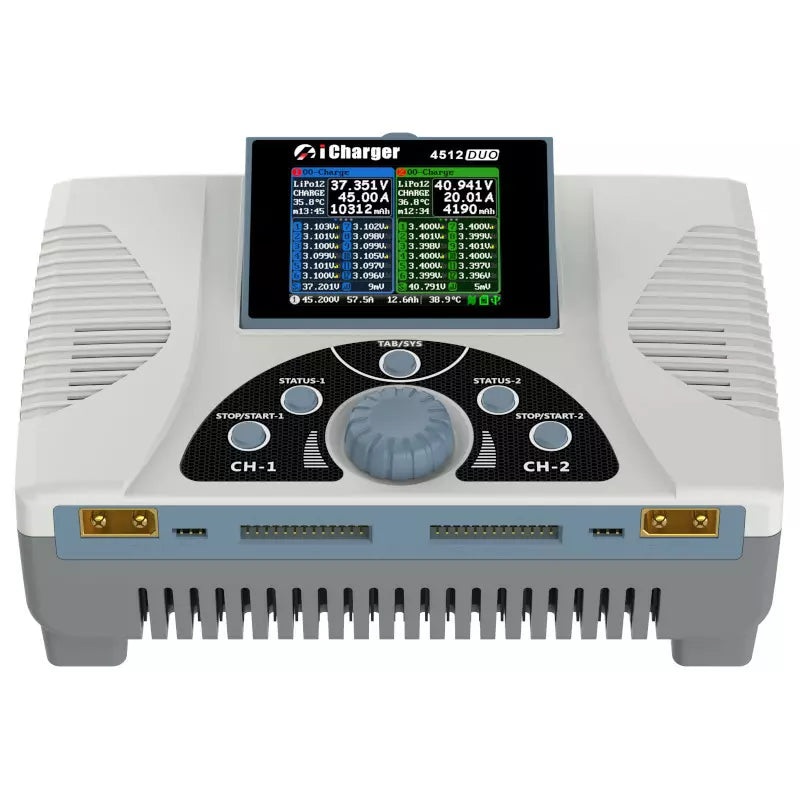

iCharger 4512 Duo 2800W 45A 12s Balance Charger from Junsi

iCharger 4512 Duo 2800W 45A 12s Dual Port Charger
Introducing the latest iCharger 4512Duo, a top-of-the-line charger designed for exceptional performance. With a remarkable 45A charge rate and an impressive total output of 2800W, this model has evolved from its 4010Duo predecessor.

The 4512Duo boasts upgraded connections on both input and output to effortlessly handle higher current levels. Featuring innovative open-port style balance connections, it eliminates the need for separate balance boards. The charger also sports a sleek IPS display, enhanced temperature ports, a USB-C fast-charge port, and more!

Experience the unmatched quality of an iCharger, coupled with the convenience of a dual-port design. This compact unit offers two independent charging channels, allowing simultaneous charging of batteries with different cell counts at up to 45A per channel. For those seeking maximum power, combine both channels to charge at an impressive 70A!

• Each channel supports 12s LiPo, Lilo, LiFe, LiHV, LTO and NiZn batteries, with maximum 2A balance current, and adopts a unique balance calculation of internal resistance correction. Supports 1-32s NiMH/NiCd batteries and 1-20s Pb batteries.
• With digital-power mode for great protection (over-current protection, over-voltage protection, input under-voltage protection, input undercurrent protection, and etc.)
• With type-c PD charging port, convenient for the user to charge mobile phones and PCs.
• Intelligent fan control. Sensing internal temperature via the internal temperature sensor, to thereby control the fan speed.
• Internal temperature protection. When the internal temperature exceeds the Power Reduce temperature, the output power is automatically reduced; and the charger will shut down when temperature exceeds the Shut-down temperature.
• This charger can save 64 parameters sets and support the data import/export to SD card.
• A2.8″ IPS LCD screen provides rich information including current, voltage, power, capacity, internal resistance, control status, time-consuming and temperature, etc.
• Multi-discharge features: self-discharge, regenerative to input or discharge to another channel, and lithium battery extra expanding discharge.
• Supports measurement for internal resistance of battery offline and online. Measure not only the internal resistance of the entire battery pack, but also measure the internal resistance of each cell within the lithium battery.
• 4512DUO has protection for reversed polarity (input or output), input voltage/current, battery temperature, charging capacity, overrun time and maximum power etc.
• Supports upgrading the hardware program by USB port or SD card. 4512DUO also supports the Junsi Console software and can display, plot and analyze the charge and discharge data by it.

Please Note: To be able to charge 12s batteries, a 13-pin XH plug-in Balance Board is required! There is NO self-balancing board supplied to be able to load 2x6s as 12! (X12-Balance-Board) available from Nexus.

For 10s as 2x 5s the well-known CB-1010 can be used with the 11-11 wire!

Specifications:
Input voltage range: 1153VDC
Maximum Output voltage: 55VDC
Maximum input current limit: 80A(Channel 60A)
Maximum charge/discharge current: 80A(Channel 45Ax2)
Maximum charge power capacity: 2800W(Channel 2000Wx2)
Maximum discharge power capacity: 200W(Channel 130Wx2)
Maximum regenerative discharge power capacity: 2800W(Channel 2000Wx2)
Maximum extra discharge power capacity: 2800W (Channel 2000W @45V/45A)
Maximum current drain for balancing: 4A(Channel 2Ax2)
Type-C PD port: 5V/3A9V/2A12V/1.5A
Support Battery type LiPo, Lilo, LiFe, LiVH, LTO, NiZn, NiMH, NiCd, Pb
Net weight: 1530g
Dimension: 210.0140.180.2 0.5mm

Connector Type Input: EC8 female
Connector Type Output: XT90 male
Connector Type Balancer: XHR

Scope of delivery:
Junsi iCharger 4512 Duo and a CD with the manual and a pdf file is possible to download.
EC8 input cable – 8AWG – 600mm
AMASS XT90H female2pcs
