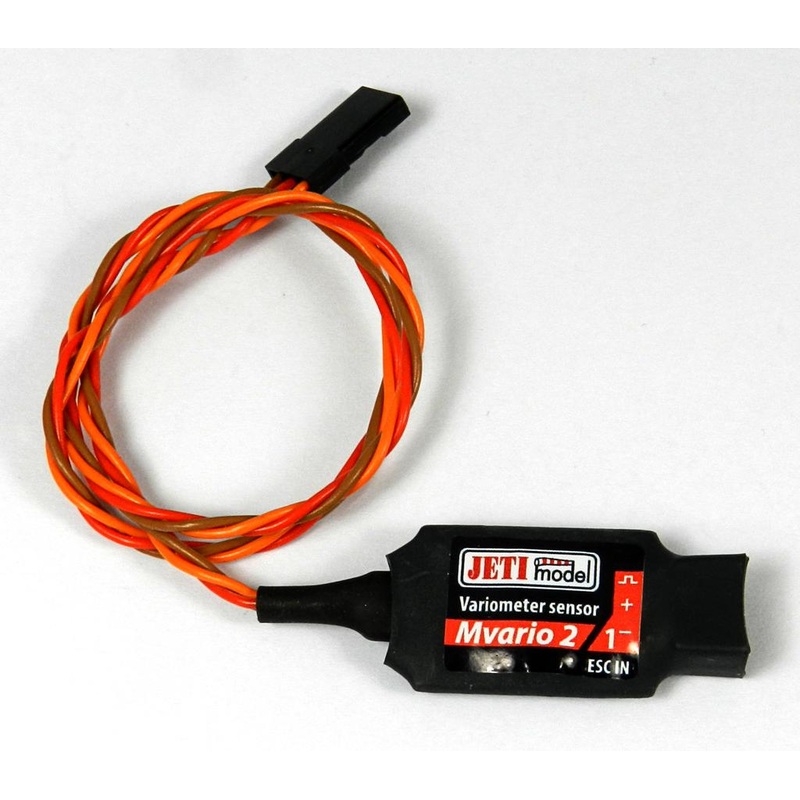

Jeti Duplex MVario2 EX REV2 JEX-MV2

MVario2 EXis a system that measures atmospheric pressure and using the obtained data it calculates the altitude above sea level, airspeed, and the rate of climb as well as the rate of descent. Changes in climb and descent rates are signalled as well. The sensor also alerts you if any alarm setting is exceeded. The sensor data can also be transmitted via the Duplex system to the user.

Features:

• Measurement of altitude, pressure, and temperature.
• Veryaccurate and fast indicationof climb and descent.
• Possible sound alarm signalling using a JETI Tx module (EU only) or JETIBOX profi.
• Possibility to be used as an Expander and to connect other sensors.
• Adjustable compensation of energy (TEK) via MSPEED EX sensor.
• Possibility to be used as an altitude switch inFAI F5JorALEScompetition categories.
• The device is compatible with EX Bus protocol, i.e. it is possible to be configured comfortably via a special menu in DC/DS JETI model transmitters.
• Firmware updates.

Technical data

MVARIO2

Resolution of measured height

0.1m

Typical noise ratio in height changes measurement

0.05m/s

Measurement range

4501100hPa

The Duplex system takes advantage of the 2.4GHz band for communication. This system not only transmits control data to the model but also sends data from the model back to the transmitter. The telemetry data collected during operation is shown as actual, measured values in real time on either LCD screen of a connected JETIBOX or on the DC/DS JETI model transmitters.

Example of connection to the receiver as an Expander

Due to its flexibility,theMVario2 EXallows connection of up to two additional sensors. MVario2 then acts as an Expander and sends its own telemetry to the receiver together with the telemetry of connected sensors. You can connect eg speedometerMSPEED EXfor the speed compensation (TEK) or any other sensor to any port (Ext1 or Ext2).

For theMSPEED EXsensor,a firmware update in theFiles for downloadsectionis available, which improves the properties usable by the MVario2 total energy compensation of the model (the update offers increased refresh rate of indicated airspeed).

Example of installation with F5J Limiter or ALES Limiter functions enabled.

If you participate in competitions in categories such asF5J or ALES (Altitude Limited Electric Soaring), set the appropriate device mode (F5J/ALES) in the MVario2 menu. Next, connect the receiver and the speed controller (ESC) as shown. The standard firmware allows you to set the cut-off height and the maximum time of motor operation.

As an alternative to the standard firmware, there is a special version certified for official competitions ofFAI F5Jcategory, which can be found in theFiles for downloadsection. During the competition you must have installed exactly this version. To read the initial altitude (‘Start Height’), use a JETIBOX or a JETIBOX mini after landing.

Example of connection with telemetry logical inputs enabled.

MVario2 EX can be configured as a sensor of logic levels (log. 0 or log. 1). If you want to be informed eg whether the landing gear is properly secured, the logic inputs function is very convenient. Simply connect the limit switch as shown – between the signal wire and the ground (minus) – this way you will know immediately whether the switch is on or off.
