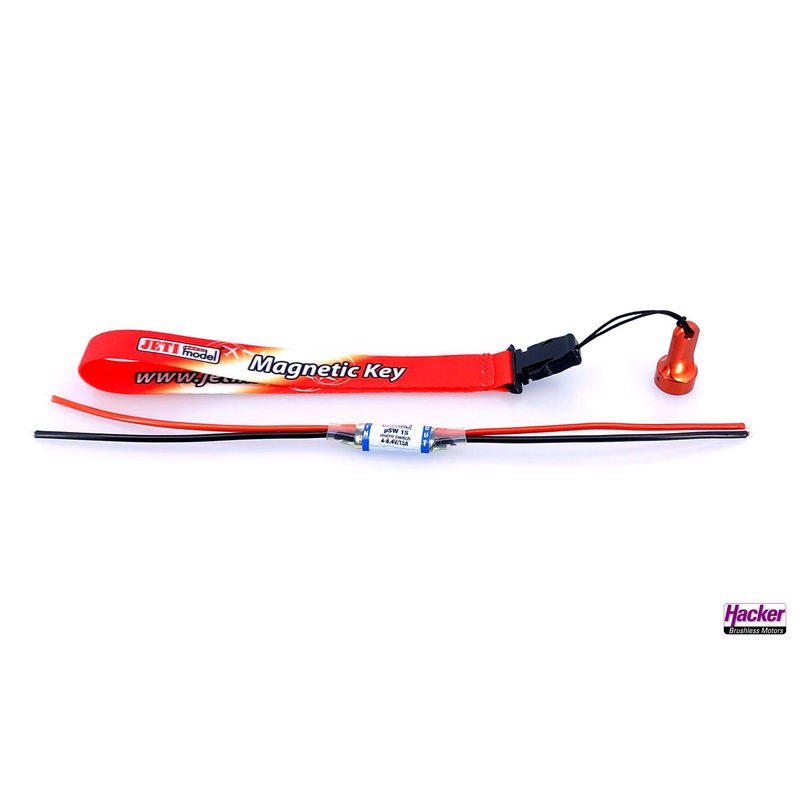

Jeti Model SW 15 – Microswitch 15 J-uSW-15

Electronic switch for switching the power supply of RC models (receivers, servos, etc.) on and off. Its compact dimensions and high current carrying capacity are suitable for all applications where space and weight are important (e.g. F3J, F5J, F3K, etc.)

Technical Data:

• Weight [g] 7
• Dimensions [mm] 32 x 9 x 5
• Continuous current [A] 15
• Telemetry No
• Operating temperature [C] -10 to 70
• Recommended input voltage [V] 04 to 8.4
• Quiescent current [A] 35
• Max. Peak current [A] 90
