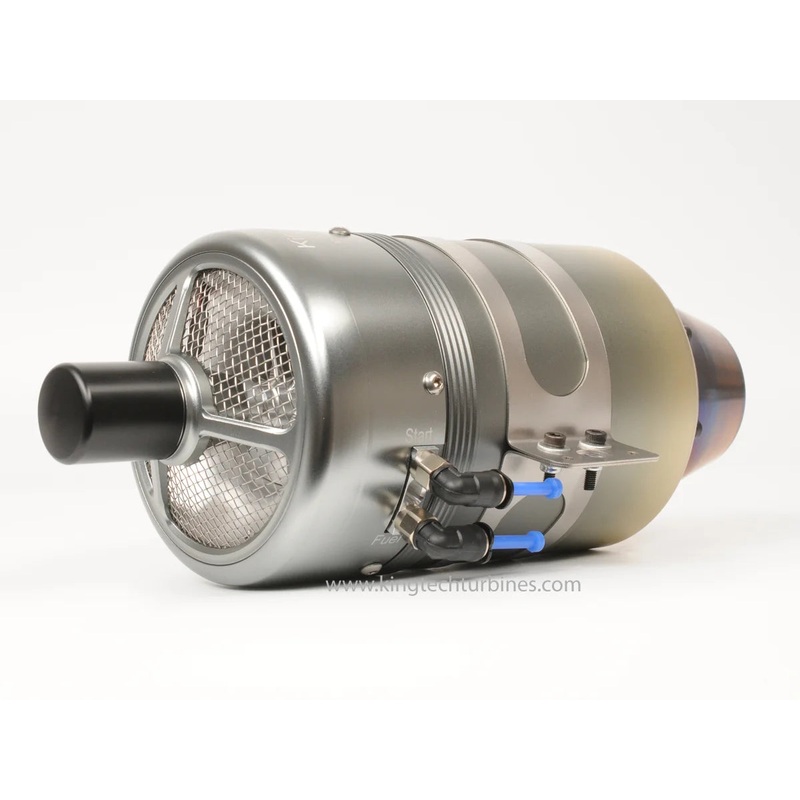

KingTech K102G5 Turbine Engine

New G5 Fifth Generationversions what’s new:

Very fast starting behaviour between 9-15 seconds depending on the turbine.
Fast restart in the event of a flameout.
New electronics, new pump.
G5 is operated with Lipo 3S.

FEATURES:
KingTech G5 utilizes SBus data transmission.
Engine/ECU integration, all operating parameters including total run time are all recorded into the engine.
The smaller and lighter external Data Relay Module (DRM) is responsible for all data, signal and power transmission.
The G5 features a brushless starter motor for reliability and durability, built-in FOD screen is also integrated.
After a run cycle and receiver switched off, GSU will remain on only until cool down completes.

K102 G5 Specification:

Diameter: 84mm

Length: 203.3mm

Weight: 910g

Max. RPM: 160000

Thrust: 10 kg @ 15 C.

EGT: 750C max

Pump type:Digital sbus brushless pump(KP500DP)

Battery:11.1v Lipo(At least 35C)

Start time: 10~15sec

Fuel consumption: 330 g / min

Fuel: Diesel, Jet A1, Kerosene

Lubrication: 5%

Maintenance cycle: 25 hr

G5 MODEL COMPONENTS LIST

Engine

Data Relay Module (DRM)

Ground Support Unit (GSU)

Digital Sbus brushless pump KP500DP

Wire Harness and Tubing Set

Fuel Pump, Filter and Shout-off Valve

Fuel Inlet Attachments

Instruction Manual

Delivery time can vary at the moment so please check with us for more information.
