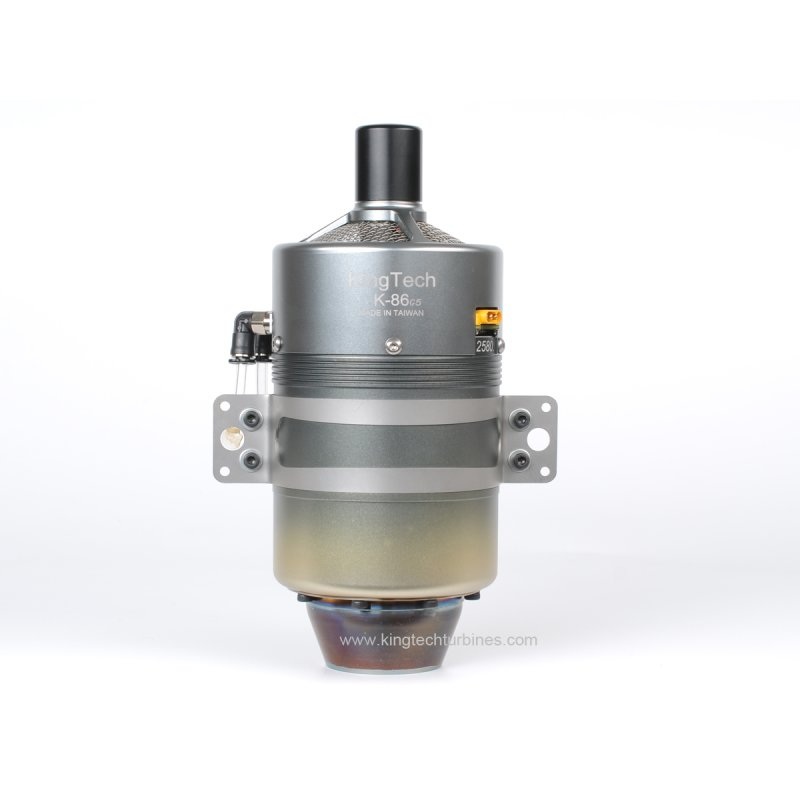

KingTech K86G5 Turbine Engine

New G5 Fifth Generationversions what’s new:

Very fast starting behaviour between 9-15 seconds depending on the turbine.
Fast restart in the event of a flameout.
New electronics, new pump.
G5 is operated with Lipo 3S.

FEATURES:
KingTech G5 utilizes SBus data transmission.
Engine/ECU integration, all operating parameters including total run time are all recorded into the engine.
The smaller and lighter external Data Relay Module (DRM) is responsible for all data, signal and power transmission.
The G5 features a brushless starter motor for reliability and durability, built-in FOD screen is also integrated.
After a run cycle and receiver switched off, GSU will remain on only until cool down completes.

K86G5 Specification:

Diameter: 76mm

Length: 178mm

Weight: 725g not including bracket

Maximum RPM: 176,000

Thrust: 8.6 kg @ 15 C

EGT: 700C max

Pump type:Digital sbus brushless pump(KP300DP)

Battery: 11.1v Lipo (At least 35C)

Start time: 15~20sec

Fuel consumption: 300 g / min

Fuel: Diesel, Jet A1, Kerosene

Lubrication: 5%
