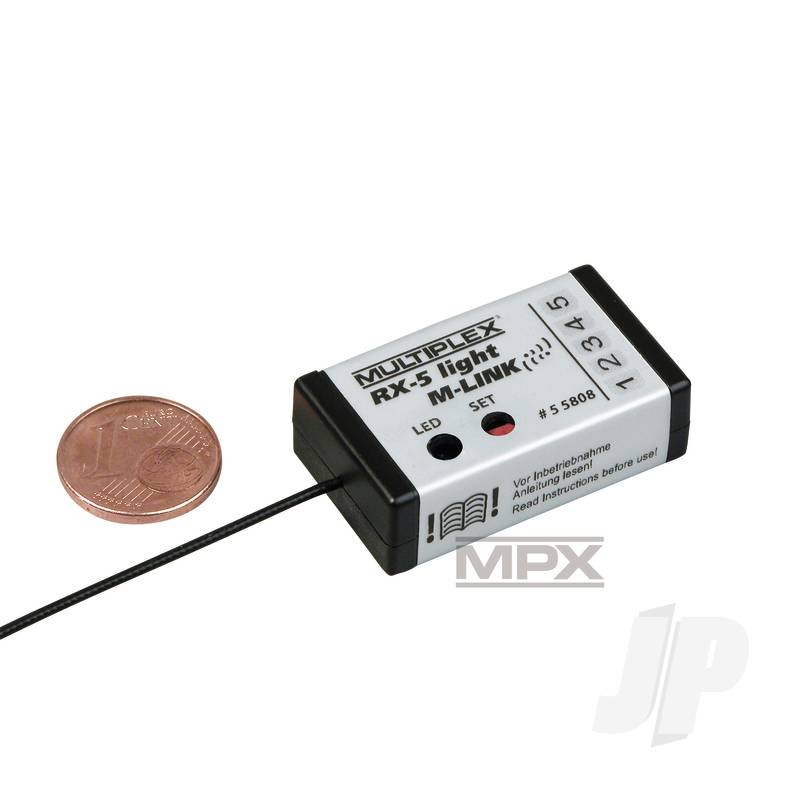

Multiplex Receiver RX-5 Light M-LINK 2.4GHz 55808 2555808

Small, reasonably priced five-channel 2.4 GHz M-LINK receiver with the UNI connector system. A compact case and small dimensions in conjunction with in-line connectors make this full range unit ideal for the smaller sport or scale models.

Typical applications:
Model helicopters up to around 80 cm rotor diameter
Ideal for Electric and power models
Gliders and electric gliders
RC model cars
RC model boats
The plus-points:
HOLD / FAIL-SAFE function
Integral button and LED for:
Binding
FAIL-SAFE programming
RESET
Operating status information

Specification:
Servo channel count: 5
Reception system: 2.4 GHz FHSS (Frequency
Hopping Spread Spectrum)
Operating voltage: 3.5 9.0 V
Power supply: 4 – 5 NiXX cells, 2S LiPo / LiIo
Operating temperature range: -20C +55C
Dimensions (L x W x H): approx. 34 x 19.5 x 11 mm
Weight: approx. 7 g
