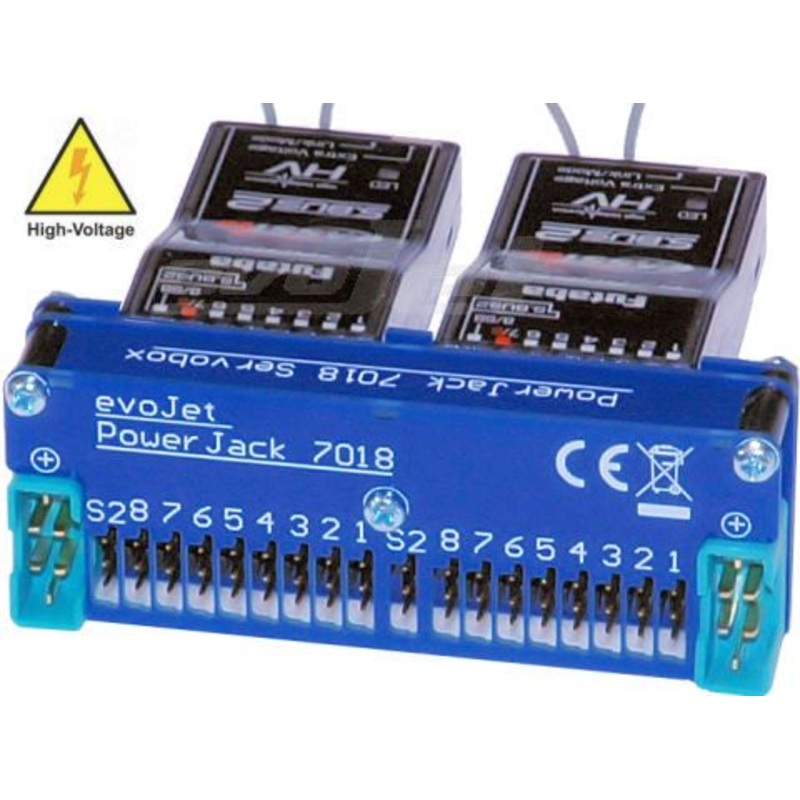

The PowerJack 7018 is a 16 channel Servobox for a double 7008SB (6308SB)typereceiver set. 2718B

They are plugged directly by tight precision contacts onto the 7018.

Please Note: Futaba have changed the case design on the later 7008 recievers and these will not fit this Powerjack. The new receiver has a plastic bar between the servo plugs in the center. All older 7008’s fit perfectly.

The power will be supplied via two MPX high amp connectors from the battery(ies) or the switch harness(es).

Because of its small and lightweight construction, the PowerJack 7018 is particular suited for middle and large models with longwiring and digital servos.

• Servobox: 16 ch5 Vimpulse out plus 2 ch SBUS2 out
• Power Supply: single or double battery 4.8V – 8.5 V HV for the servos
• Rating: up to 30 Amps
• Connections: JR / Uni / Futaba with Goldpins
• Dimensions: 72 x 27 x 16 mm
• Weight: 26 g
• Package includes: PowerJack 7018 and two MPX connectors (suitable power switch harness see Item: [2222])
